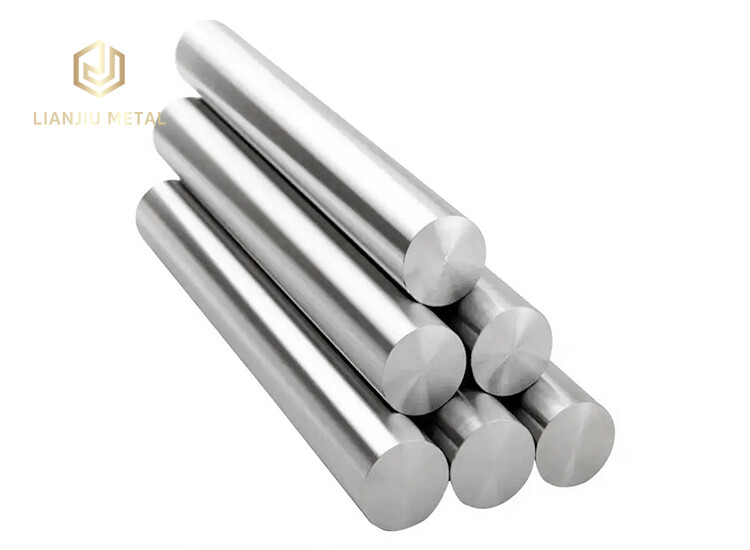

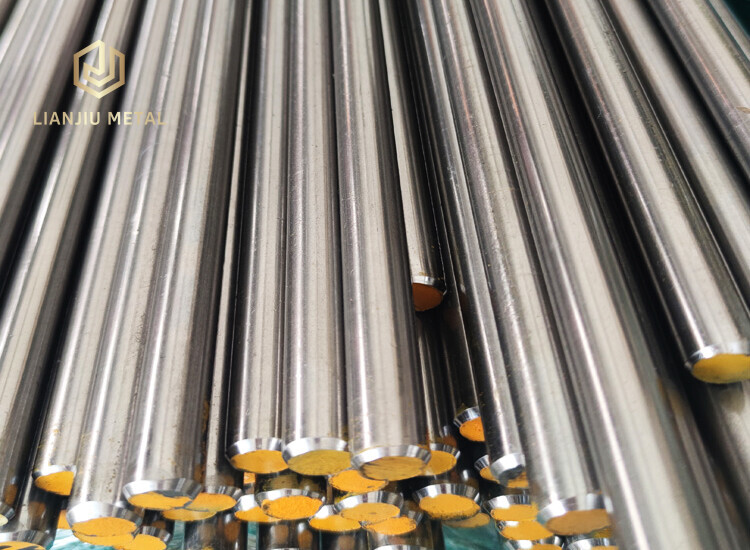

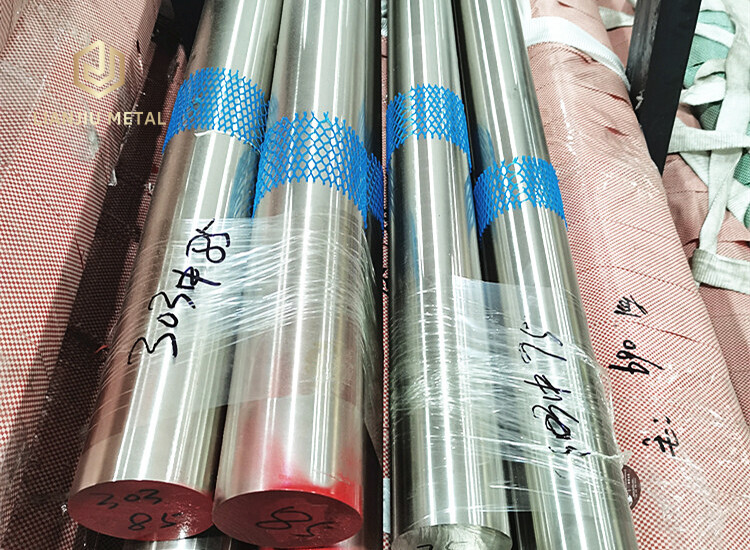

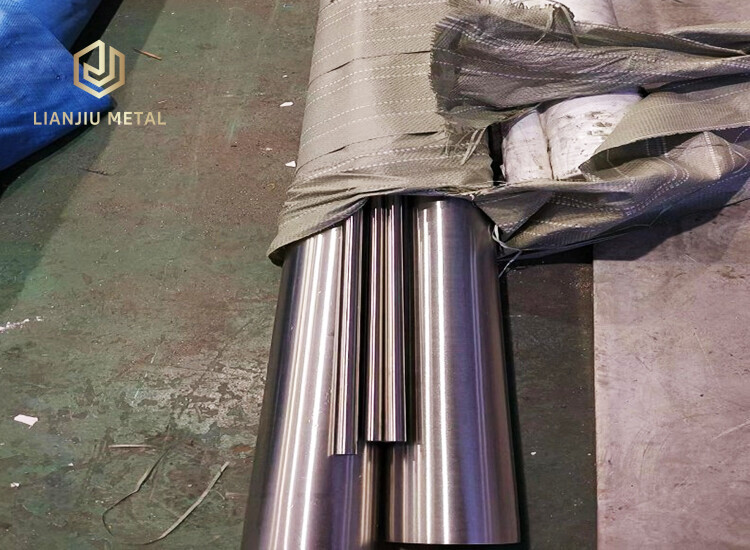

Incoloy 800/800H/800HT Bar
Email：admin@rizhaosteelgroup.com
Phone：+86 19954213328
WeChat：+86 19954213328
WhatsApp：+86 19954213328
Inquiry Now →

PRODUCT DESCRIPTION

Incoloy 800/800H/800HT is an iron-nickel-chromium alloy with moderate strength and good resistance to oxidation and carburization at elevated temperatures. It is particularly useful for high-temperature equipment in the petrochemical industry because the alloy doesn't form the embrittling sigma phase after long time exposure at 1200°F (649°C). Excellent resistance to chloride stress-corrosion cracking is another important feature of alloy 800.

Incoloy 800/800H/800HT Round Bar Specification

SpecificationASTM B408 UNS N08800, AMS 5766
StandardASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS
Nickel Alloy 800 Round bar sizeDiameter: 3~800mm
Inco 800 Alloy Angle bar size3*20*20mm~12*100*100mm
Alloy 800H Square bar size4*4mm~100*100mm
DIN 1.4876 Billet Size1/2"to 495mm Diameter
ASTM B408 UNS N08800 Rectangles Size33 x 30mm to 295 x 1066mm
FinishBright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black
ToleranceH8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or as per clients’ requirements
SurfaceHot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
ConditionCold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed
TechniqueIncoloy N08800 Hot Rolled, Cold Rolled, Cold Drawn, Forged
FormRod, Half-Round, I/H, Round-Rod, Hollow, Blocks, Rings, Round, Precision-Ground, Channel, Billet, Ingot, Forging, Flat, Angle, Profiles, T-Bars, Rectangle, Square, Threaded, Triangle, Hex
TypeSIZES (mm)SIZES (Inches)ISO Tolerance
Incoloy 800 Cold Drawn and Polish Bars3.00 - 75.001/8” - 3.00”h8-h9-h10-h11
Nickel Alloy 800 Cold Drawn and Ground Bars10.00 - 75.005/6” - 2.50”h8-h9-h10-h11
Inco 800 Alloy Peeled and Polished Bars40.00 - 150.001.50” - 6.00”h11, ASTMA-484 h11-DIN 1013
Alloy 800H Peeled and Ground Bars20.00 - 50.003/4″ - 2.00”h9-h10-h11

Incoloy 800/800H/800HT Round Bars Equivalent Grades

STANDARDWERKSTOFF NR.UNSGOSTAFNORJISBSENOR
Incoloy 8001.4876N08800ЭИ670Z8NC32-21NCF 800NA 15X10NiCrAlTi32-20XH32T
Incoloy 800H1.4958 / 1.4876N08810ЭИ670Z8NC33-21NCF 800HNA 15(H)X5NiCrAlTi31-20XH32T
Incoloy 800HT1.4859 / 1.4876N08811ЭИ670-NCF 800HTNA 15(HT)X8NiCrAlTi32-21XH32T

ASTM B408 Incoloy 800/800H/800HT Rod and Bars Chemical Composition

GradeNiCrFeMbTiCuMnCSAlAl + Ti
Incoloy 80030.0 - 35.019.0 - 23.039.5 min-0.15 - 0.60--0.10 max-0.15 -0.603.15 - 4.15
GradeNiCrFeSiTiCuMnCSAl
Incoloy 800H30.0 - 35.019.0 - 23.039.5 min1.0 max0.15 - 0.600.75 max1.5 max0.05-0.10.015 max0.15 -0.60
Incoloy 800HT30.0 - 35.019.0 - 23.039.5 min1.0 max0.25-0.600.75 max1.5 max0.06-0.10.015 max0.85-1.20

Incoloy 800/800H/800HT Rods Mechanical & Physical Properties

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
7.94 g/cm31385 °C (2525 °F)Psi – 75,000 , MPa – 520Psi – 30,000 , MPa – 20530 %

Salient Features of Incoloy 800/800H/800HT Flat/ Hex Bar

  • Precision Straightened Nickel Alloy 800 Bright Bars
  • Highly controlled heat treatment with SCADA control
  • Available in shape of Round, Hex, Flat, and Square
  • Ultrasonic / Magnetic Particle Eddy current testing byn-circling , Rotating Prob
  • Mirror Finish Inco 800 Alloy Bars
  • Precision Tolerance
  • Close Length Tolerance
  • Unique Packaging of Alloy 800H Rod
  • DIN 1.4876 Hex Bar is certified to all major international specs
